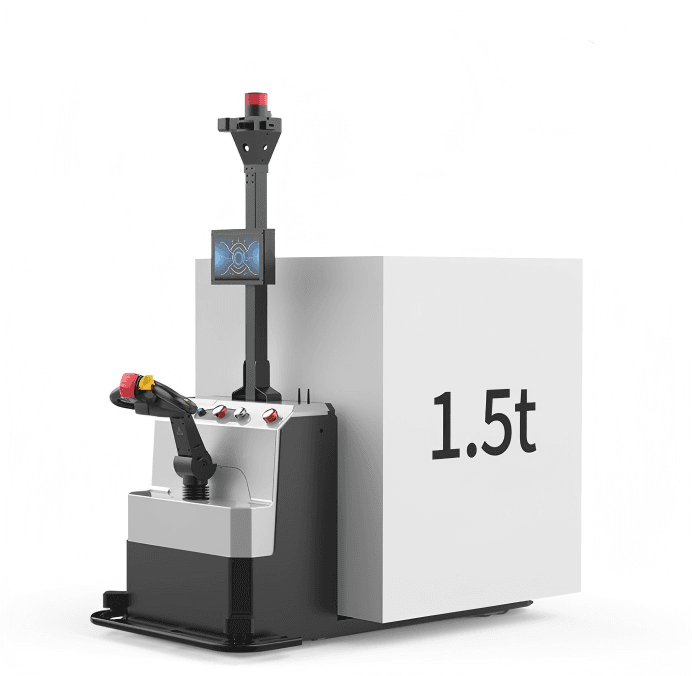

✅# 1500kg Automated Guided Forklift (AGV) | LiDAR-Guided Industrial Pallet Handling Robot

Our 1500KG Automated Guided Forklift AGV is a professional unmanned pallet handling robot for warehouse, factory and logistics applications. It adopts 60m long-range LiDAR navigation plus 4 sets of 8m obstacle avoidance LiDAR, equipped with IP65 industrial pallet vision recognition for accurate automatic picking and placing. Rated load 1500KG, total weight 380KG, compact overall size 1715×940×2080mm, small turning radius 1350mm, suitable for narrow aisle stacking. Travel speed up to 1m/s, equipped with 48V 30Ah lithium battery, electromagnetic brake and polyurethane silent wheels. Support joystick manual operation and 10.1 inch HD touch screen control, ideal for unmanned warehouse material handling automation.

✅This 500KG full electric stacker is equipped with Electronic Steering & AC Servo Motor, supporting Pedestrian & Automatic dual operation modes, ideal for warehouse logistics, factory material handling and pallet stacking work.

✅With 500KG max load capacity and 500mm load center distance, the whole machine weighs 240KG including battery. Overall dimension is 1738×858×1910mm, fork size 1000/136/60mm, fork outer width 540mm, fork lifting height up to 1384mm and minimum fork height 84mm. The mast max working height reaches 1910mm, ground clearance 40mm and turning radius 1425mm, flexible for narrow aisle operation with 1450mm aisle width for 1000×1200 pallet.

✅Adopts durable polyurethane wheels for front, rear and auxiliary tires, with reasonable wheel track design for stable running. Travel speed reaches 2.8km/h both loaded and unloaded, lifting speed 100mm/s and lowering speed 50mm/s, efficient and smooth in daily handling.

✅Built with front bumper safety contact edge, electronic service brake for full safety protection. Configured with dual 1kW drive motor and 0.8kW lifting motor, 48V battery system with 26×4KG battery weight, supports automatic charging and manual direct charging two methods. Compliant with DIN 12053 standard, driver ear noise level＜70dB(A), low noise, energy saving and environmental friendly, perfect for indoor warehouse, workshop and supermarket cargo handling.

✅This 1500KG heavy-duty electric pallet jack adopts dual operation design with drive mode and manual operation mode, supported by flexible joystick control for effortless steering and handling. Built with electronic steering and AC servo motor, it delivers stable running and precise control for warehouse, factory and logistics pallet transportation.

✅Equipped with high-performance 48V/30AH LiFePO4 battery, the pallet truck only needs 1 hour fast charging to support up to 8 hours rated working time unloaded and 6 hours under full load. It supports manual battery swap and automatic charging methods, greatly improving work efficiency.

✅The whole machine weighs 450KG with overall dimensions 1729×1126×1967mm, featuring compact structure and small turning radius of 1500MM, suitable for narrow aisle operation. It matches 1000×1200mm and 800×1200mm standard pallets with optimized aisle width for cross and along fork placement.

✅Adopting full polyurethane wheels including load wheel, drive wheel and auxiliary wheel, it is wear-resistant and silent. Travel speed reaches 0.8m/s under load and 1m/s no load, with stable lifting and lowering speed. Designed with front bumper safety contact edge and electromagnetic brake system, the driver ear noise level is below 70DB(A), fully compliant with DIN 12053 standard, safe and environmentally friendly for long-time industrial use.
